Audio Magic XFB9071 Hi-Fi Audio Transformer | Carnhill Model
- Fully Assembled & Tested
- Users Guide Included
- Pro Audio Equipment
Audio Magic XFB9071 Hi-Fi Stereo Audio Transformer | Carnhill Model
This essential passive audio tool brings color, detail, improved sonic image, spacial separation, harmonics and glue to your audio mix. Low frequency phase shift enhances bass frequencies. These are the same style UK manufactured transformers, that are used in Rupert Neve equipment, and are responsible for that classic sound. Dubbed the Audio Magic XFB9071, our initial testing indicates this piece of gear will add subtle character to your audio recordings and mixes. Sounds are glued together, in an ear pleasing way, as they transition through the magnetic medium.
This stereo British issue high performance audio transformer, is a no compromise, professional audio signal transformer primarily intended for line level applications. This broadcast / pro-audio quality EMI screened audio signal transformer offers low distortion, even at high signal levels. Similar style as used in 1073 series Neve equipment. Dual primary and secondary winding’s have been wired in series to optimize input/output impedance to suit source and load requirements.

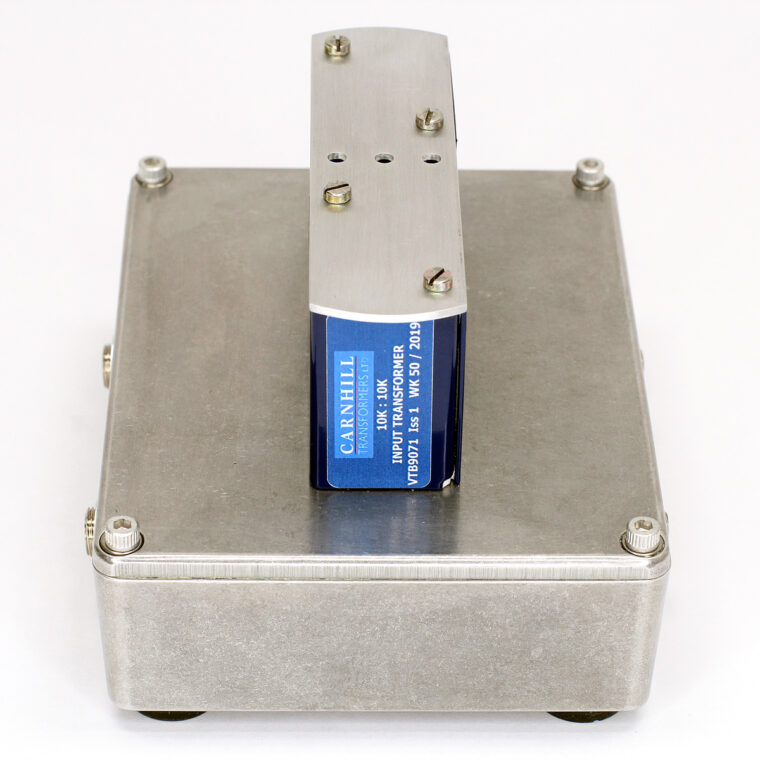

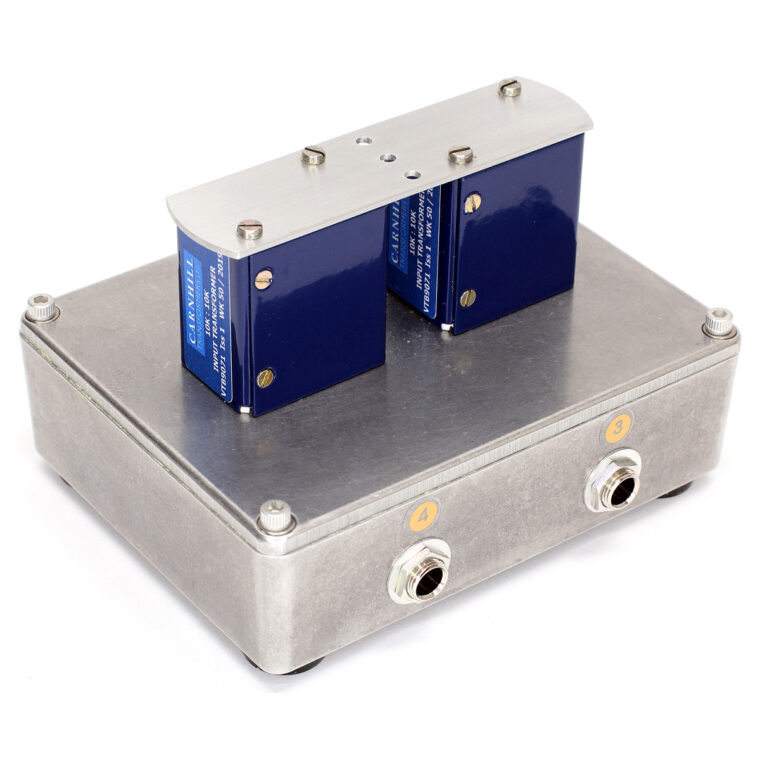

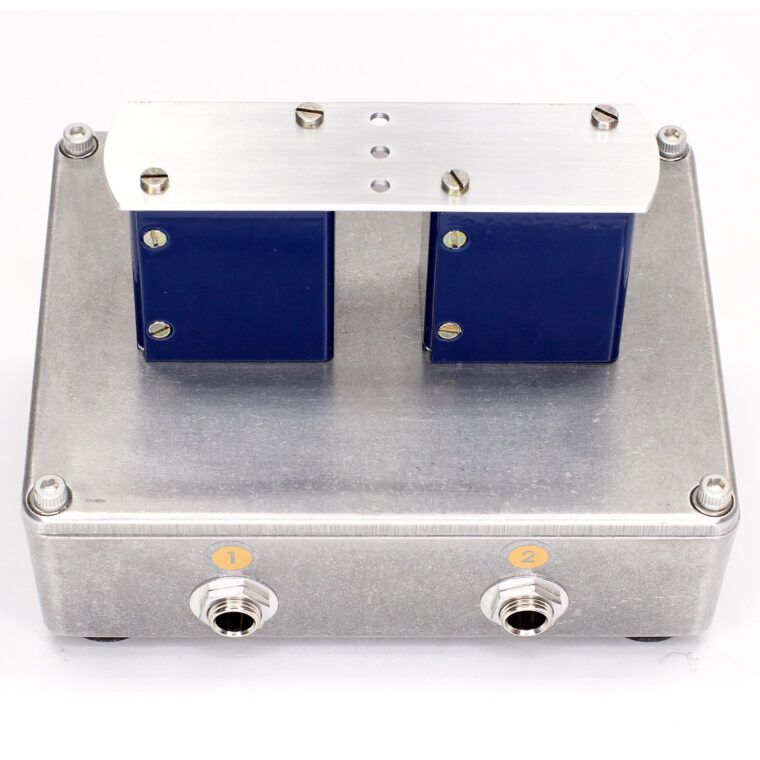

Seen here, the 1st pre-production unit delivered subtle warming and gluing of the audio signal. As well as opening up the the sonic image and frequency spectrum. High quality die-cast magnesium enclosure. Large non-slip rubber feet. Quality 1/4″ TRS audio I/O connectors. Each stereo transformer unit is fabricated once the order is placed.
This hardware can be put to work during sampling, recording, mixing and mastering. By using it at all project stages, you can achieve results previously only achieved at large studios. These 10K ohm British made transformers, using Mumetal cores, provide minimum load at low frequencies and allow for transparent low end performance. Internal electrostatic shield for high common mode noise rejection. Steel and aluminum chassis for electrical shielding. Can be used for for eliminating ground loops with interconnected equipment. This product allows project and home studios to achieve outstanding audio quality, at affordable cost. Hand built and tested in the United States, with quality and passion.
- Stereo I/O: Left & Right Channels
- Fully Balanced: Tip, Ring, Sleeve
- Frequency Response: +/- 0.25 dB 20 Hz to 20 kHz
- Power Level Max: +27 dBu | 0.5 % THD at 50 Hz
- Winding Ratio: 1:1ct
- Production Issue: 2021
- MN: Carnhill VTB9071 10K:10K
- Core Material: Mumetal
- Impedance: 10K Ohms
- DC Resistance: 382 Ohms Primary | 495 Ohms Secondary
100% SATISFACTION GUARANTEED | QUALITY PRODUCT FROM BIG NOISE MPC
Weight 1.2 lbs Dimensions 11 × 9 × 6 in
